Wishes Granted
General Specifications and Arrangement

Horizon Yacht, known for building strong, high-quality yachts with ship-like hardware and durability since 1987, was asked by the original purchasers, to accommodate some custom changes to achieve a larger and more open feeling yacht.

* Custom Design and Construction in 2005 *

Custom design opened the Galley to the Salon and extended the main deck house and pilothouse by 27". The overall height was also increased by 10" for added headroom on both decks (6 ½ to 7’). This gives the yacht the feel of a much larger vessel.

Wishes Granted accommodates six guests forward with a three-stateroom ensuite arrangement. The Master Stateroom is full beam and amid ship and offers his and her heads and vanities with a walk-thru Jacuzzi Tub/Shower. She features hi-gloss ribbon-cut American Cherry and Maple Burle joinery with Black Granite and marble counters and bathroom floors, throughout. The main deck features a Dining area forward, an open Country Kitchen Style, Chef’s Galley amidship, and an expansive and comfortable Salon aft with a Wet Bar and Day-Head.

A large sunbed and settee on the foredeck along with the covered aft deck settee, table and chairs, are ideal for lounging, entertaining and dining alfresco. The boatdeck, above, also features a settee and small table, a hidden sink with refrigerator and a BBQ grille.

The Enclosed Skylounge offers excellent all-round visibility, a generous captain’s desk, a large settee and a recently updated Garmin Navigation Electronics Package. Twin Caterpillar 1550 HP engines give her a cruising speed of 17 knots and maximum speed of 21 knots. Bow and stern thrusters make this vessel particularly well suited for short crew and experienced owner operation.

NEW (2023) electronics package includes:
NEW Starlink Internet System
Two, Garmin GPSMAP 8624 With Mapping
Garmin GSD 25 Premium Sonar Module
Garmin MSC 10 Marine Satellite Compass
Garmin GMR 1224 xHD2 Open Array Radar
Garmin GMR Fantom 18x/24x Dome Radar Radome
Airmar UltraSonic weather station
Two, Axis M5525-E Network Cameras

DIMENSIONS AND CAPACITIES
Knots, Gallons, Feet
and Horse Power

Performance

Cruising Speed: 17 kn

Max Speed: 21 kn



Dimensions

LOA: 82 ft

Beam: 20 ft

Max Draft: 6 ft 4 in

Displacement: 143,300 lb



Cabins

Number of Guest Cabins: 3 with 4 Heads

Number of Crew Cabins: 2 with one Head

One Day Head on Main Deck

Two Crew Cabins with a large, shared Head



Engines

Engine #1 – Port

Engine Make: Caterpillar

Engine Model: C30

Year: 2005

Hours: 3170

Power: 1550 hp



Engine #2 – Port

Engine Make: Caterpillar

Engine Model: C30

Year: 2005

Hours: 3180 (55 hrs SMOH)

Power: 1550 hp



Tankage

Fuel Tanks Capacity: 2477 gallons

Fresh Water Tanks Capacity: 446 gallons Holding Tank Capacity: 200 gallons

A recent inter-cooler failure required a major overhaul of the starboard main engine, and new upgraded inter-coolers were installed on both mains.

Full Specifications, Recent Upgrades and Services with Additional Photos and Videos available soon.

GENERAL ARRANGEMENT AND ACCOMODATIONS
Starting from
the top

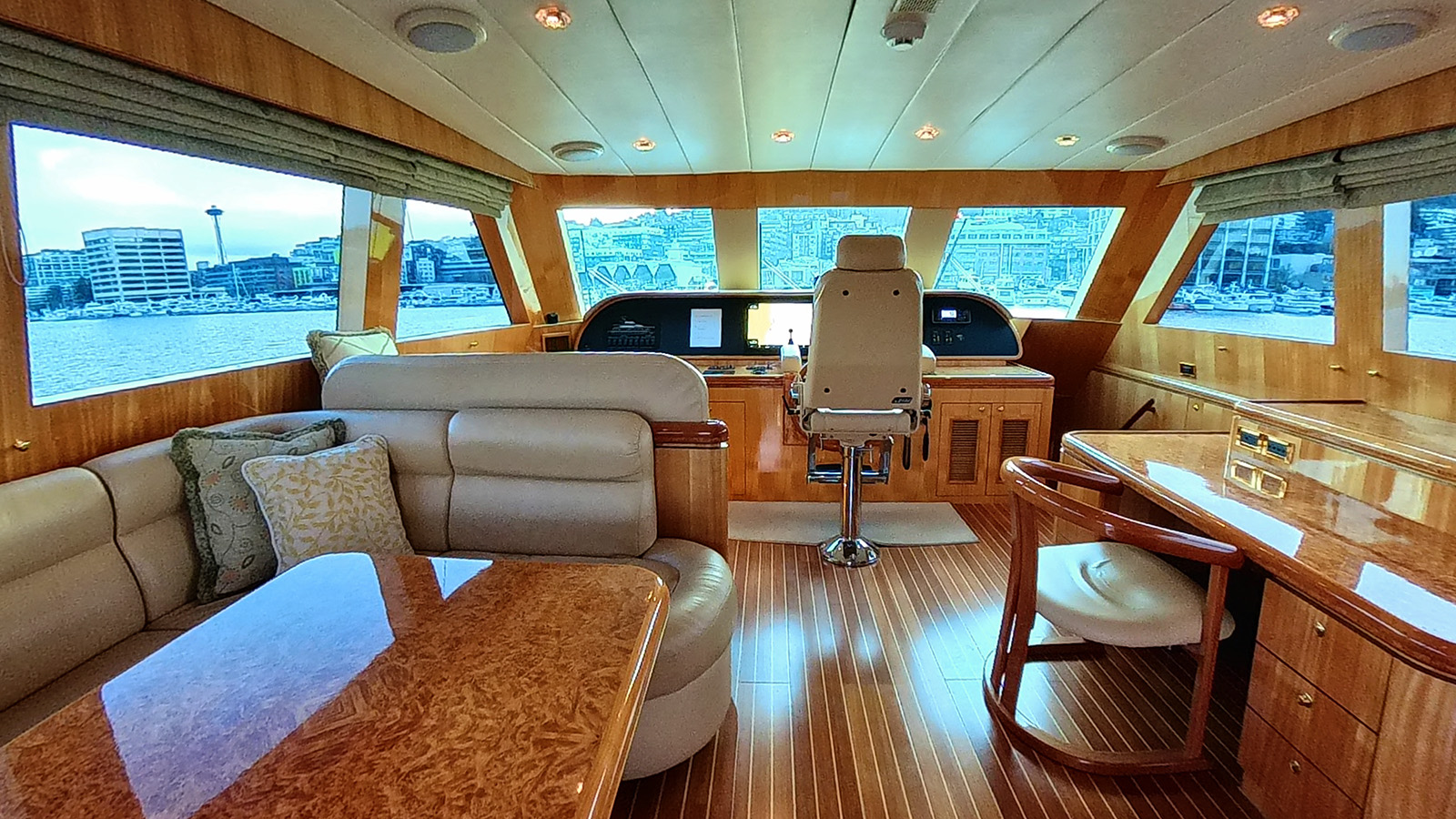

A very spacious Catbird Seat, as with the Main Deck, the entire Skylounge was lengthened by 27”, and the headroom was increased to 6’ 7” plus (over the standard 82’ Horizon Enclosed Pilot House). The nearly 360-degree view at this elevation, with the expansive helm station and intuitive Garmin Electronics Package (NEW 2023) offers superb situational awareness when transiting harbors, shipping lanes, and troubled waters. Italian leather, hi-gloss Cherry and Maple Burle, a large settee with hi-lo table, a generous captain’s desk and are all laid out to insure comfortable and straight forward operation.

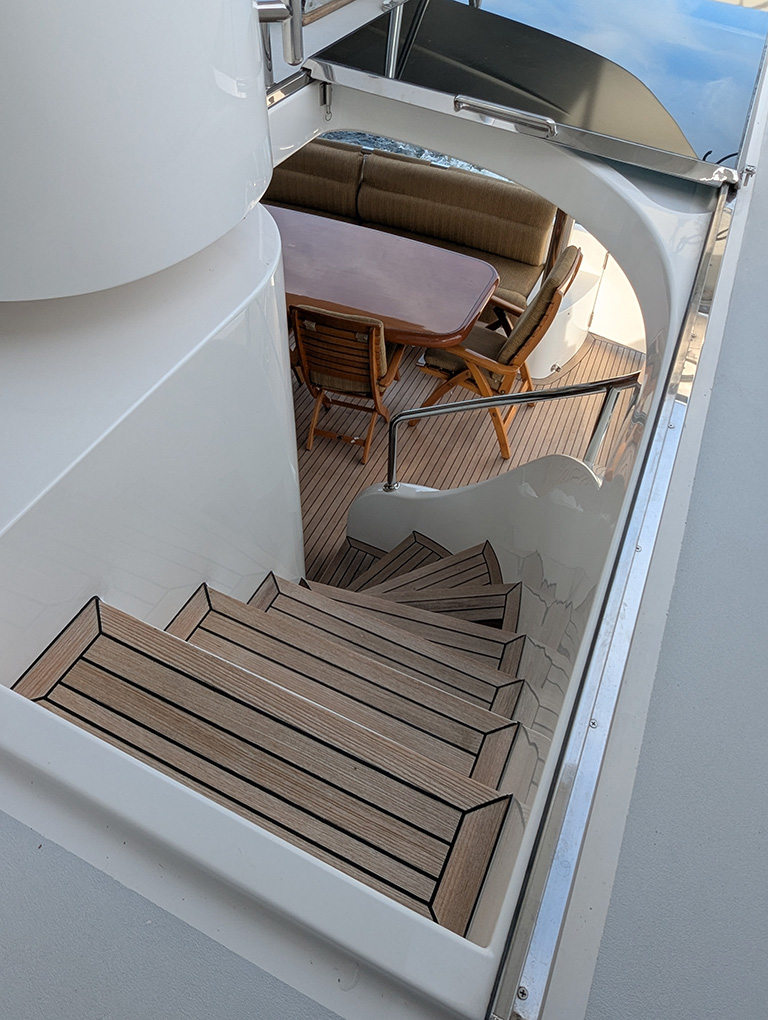

Boarding is typically done at the aft deck. Port and starboard gangways, large swim deck with stairs up port and starboard, and the telescoping passorelle, built into the starboard swim deck stair, offer comfortable options at many dock levels.



The completely covered Aft Deck features convenient port and starboard Docking Control Stations, a large dining table with settee and five chairs, easy access to the port and starboard side decks and is the main entry to the open and expansive Salon / Galley / Dining, main deck arrangement.

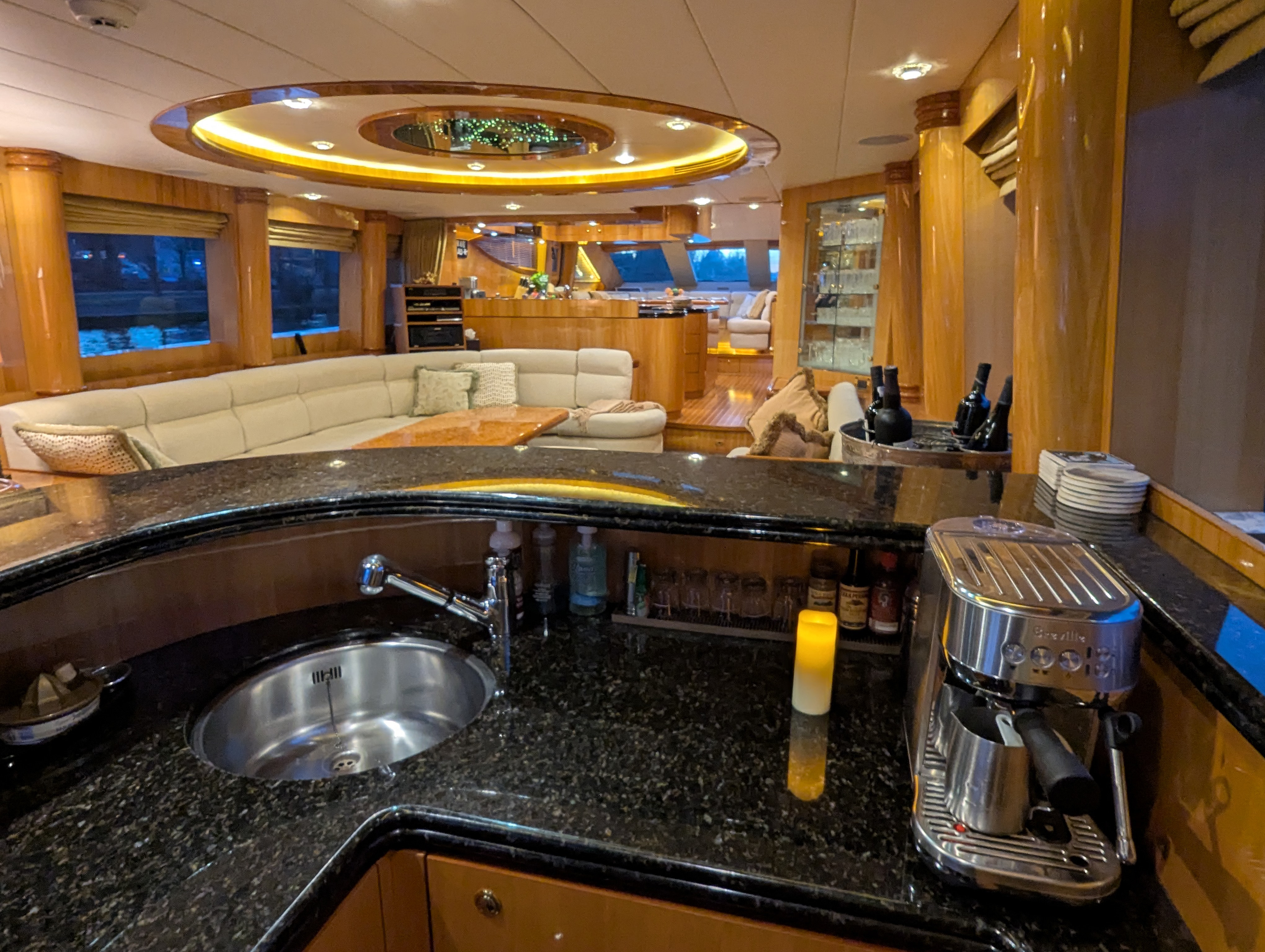

As you enter the Salon, with the well-placed wet bar to starboard, you’ll notice the wide-open and expansive feeling that the custom modifications bring to Wishes Granted. A lot of windows, a lot of seating, a lot of headroom and elbow room. Easy access down to the Crew Quarters and Engineroom via the port aft stairway. First class cabinetry, valances, finishes, indirect lighting and soft surfaces, all more than whisper Luxury Living.



Forward, and one step up brings you to the foot of the stair to the Skylounge, and the very friendly Galley. With more than ample refrigeration, storage cabinets, drawers, pantry, and expansive Black Granite counters, most chefs and family members will enjoy their time preparing snacks and meals.



The wide-open feeling of Wishes Granted carries forward all the way to the forward Dining Area with seating for six and convenient storage space under the table. Port and starboard side doors for access to the side decks and bow, and a stair down to the owners’ and guests’ cabins to starboard.

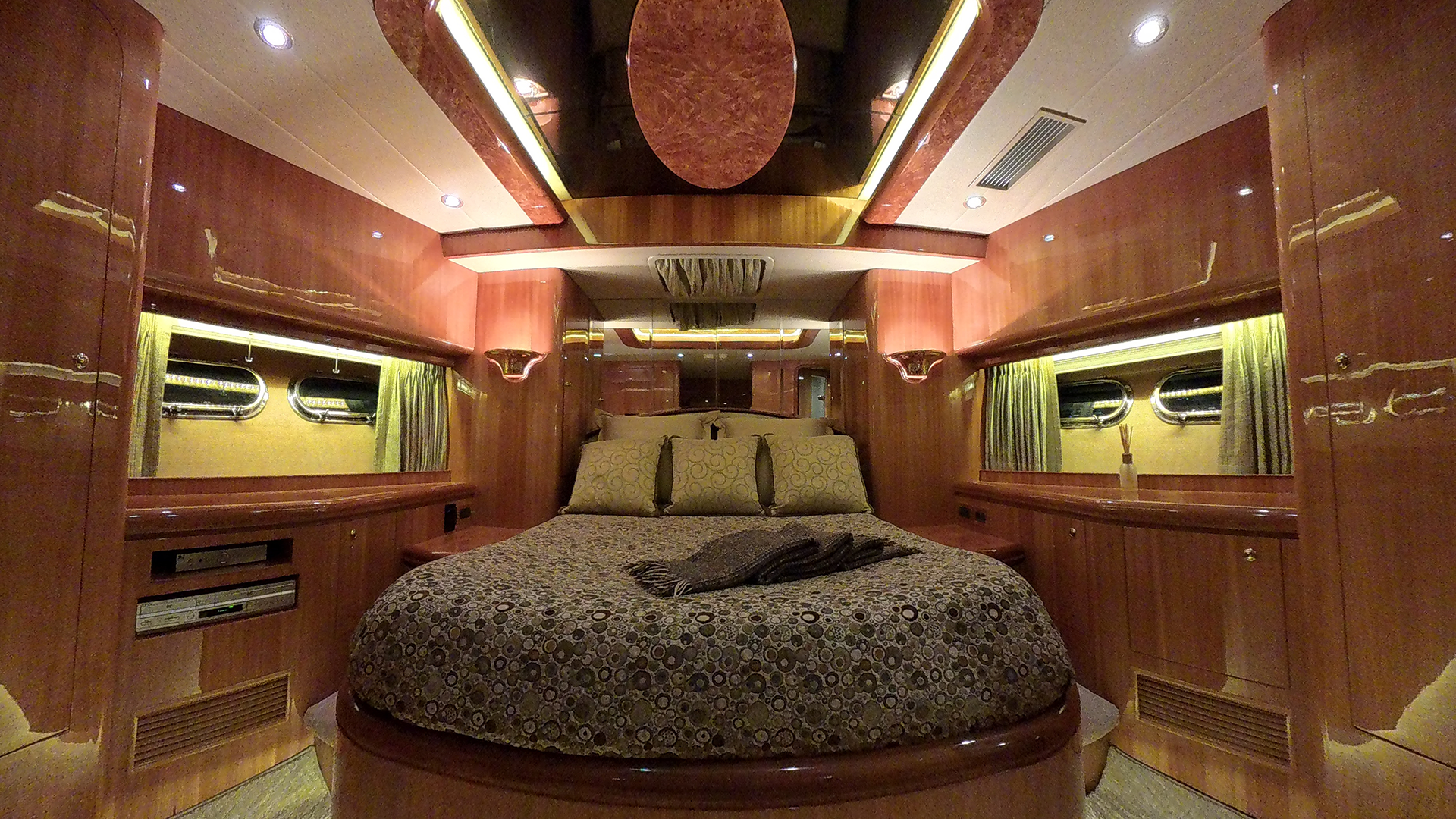

Below the main deck and forward is the VIP Guest Cabin with centerline queen bed and ensuite head. Aft and to port is the Port Guest Cabin with twin beds and ensuite head. The Master Cabin is aft through a companionway that features a washer dryer stack and small refrigerator. Midship full-beam Master with king-size bed, his and her heads and a walk-thru Jacuzzi tub/shower, gives you that warm luxurious feeling of, Wishes Granted.

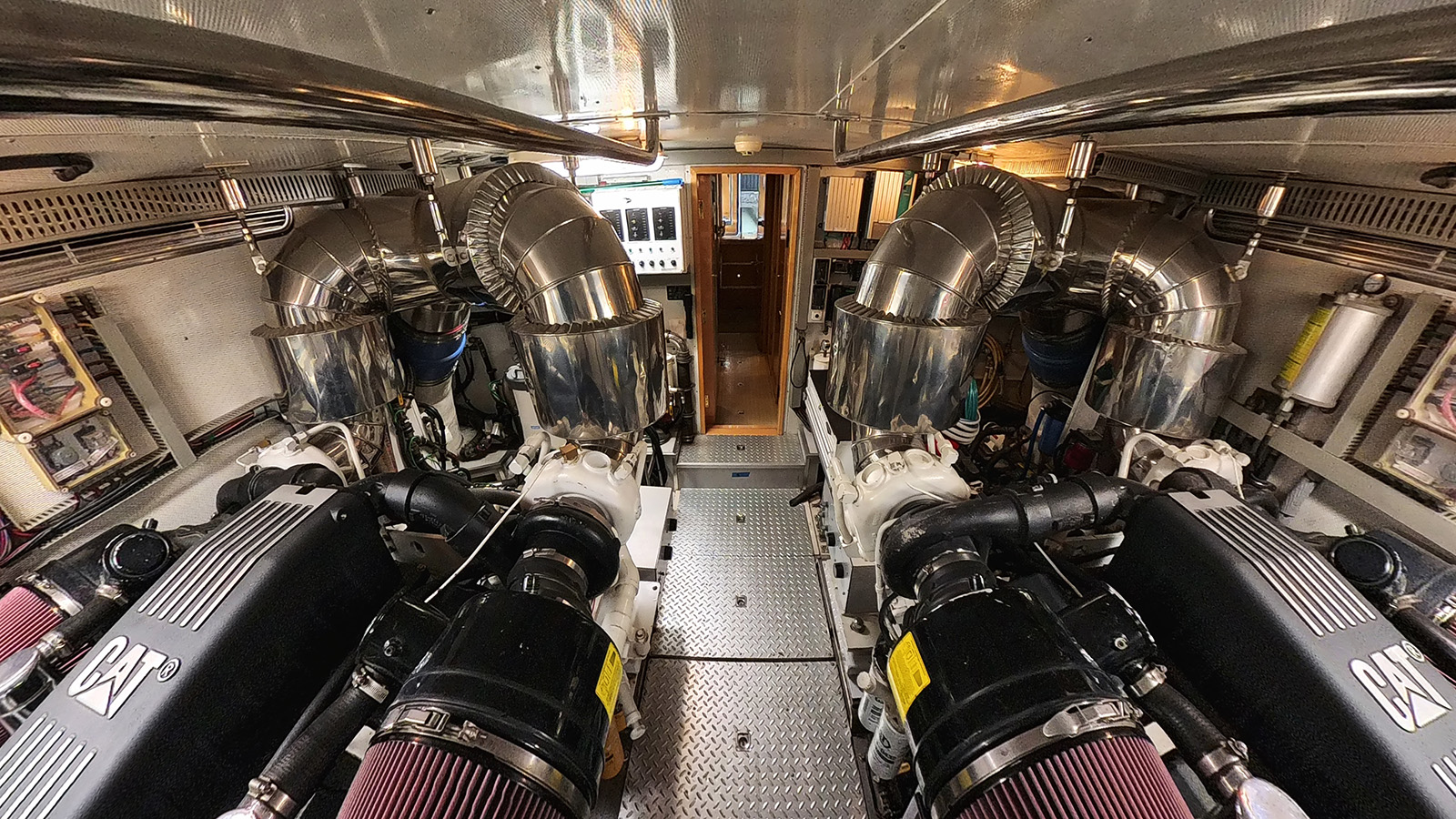

Mechanical and Equipment
